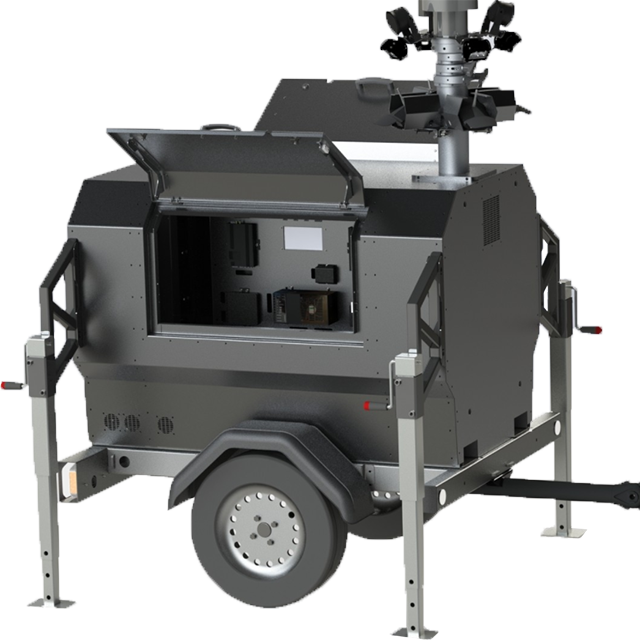

Autonomous Surveillance

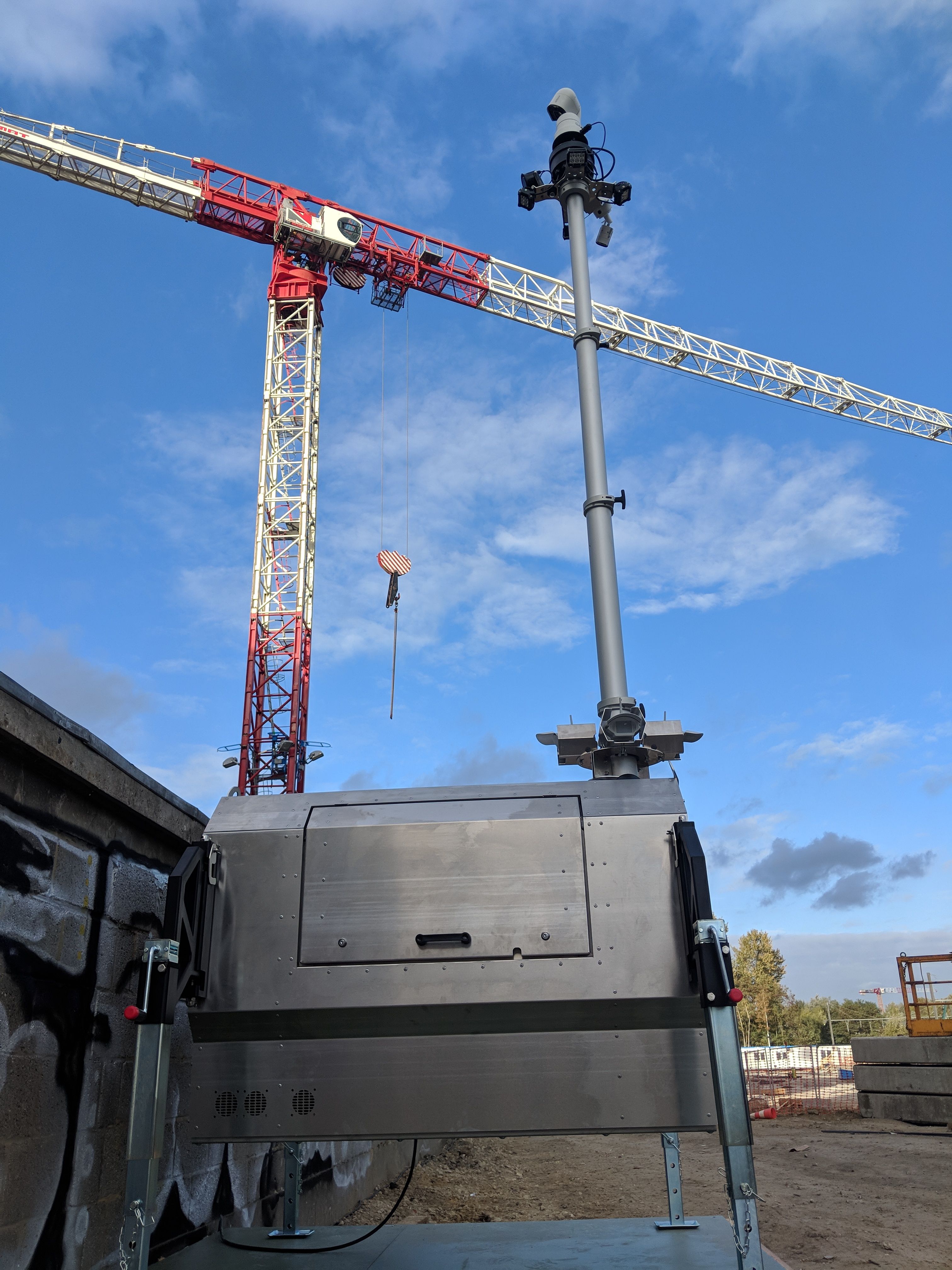

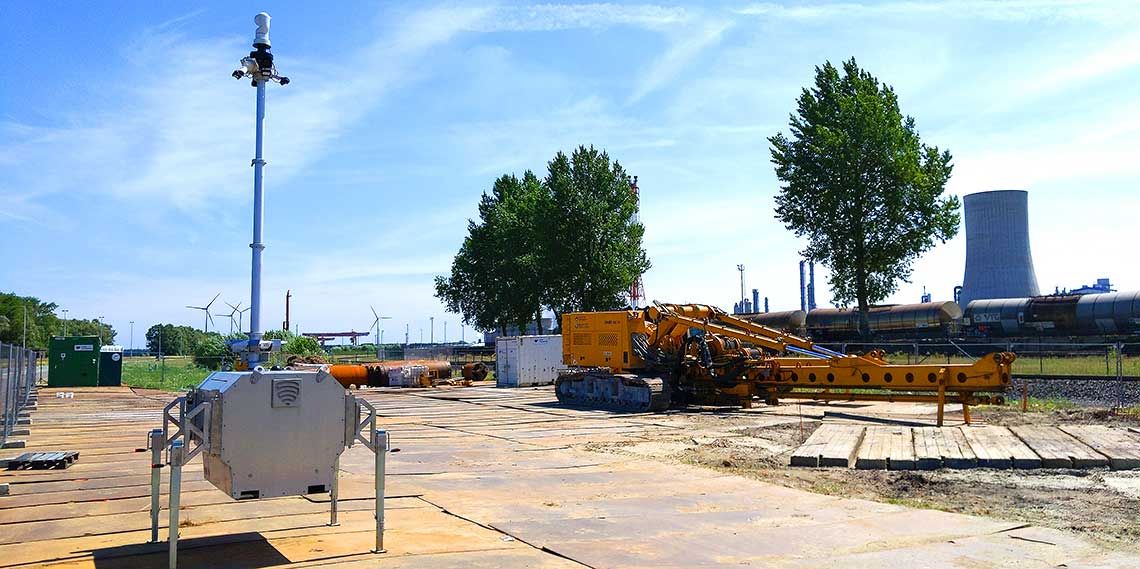

The Hybrid has been specifically created to provide autonomous surveillance and temporary security for Airports, Construction sites, Utility sites, Outdoor storage, Heavy industry, Emergency relief, Events, Traffic monitoring, Military, Law Enforcement, Border control, Cities and Off-grid areas.

Modular design

Rust free aluminium body
Solar panels 220W (autonomous power & increase autonomy)
Optional wind turbine (400W)

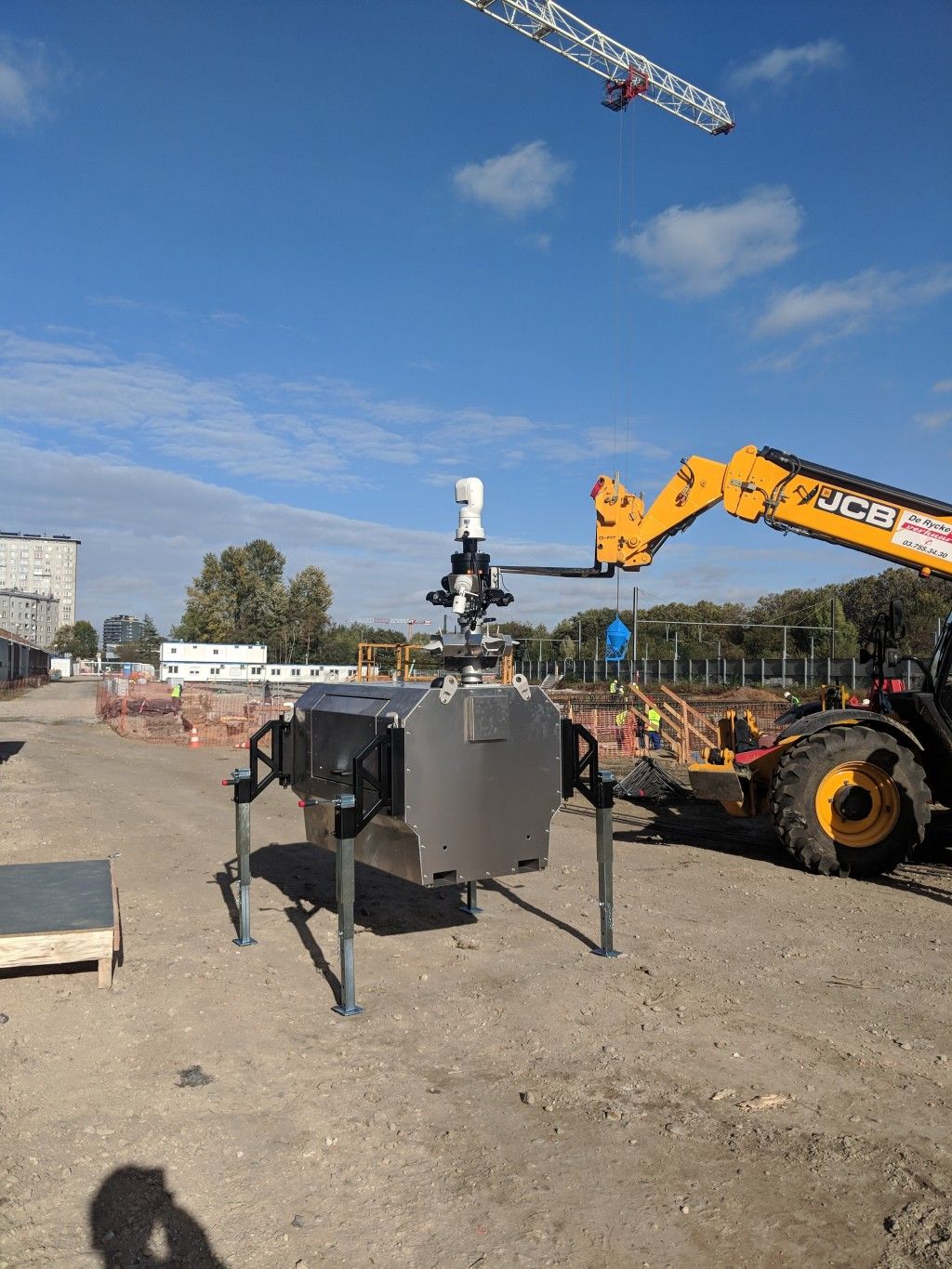

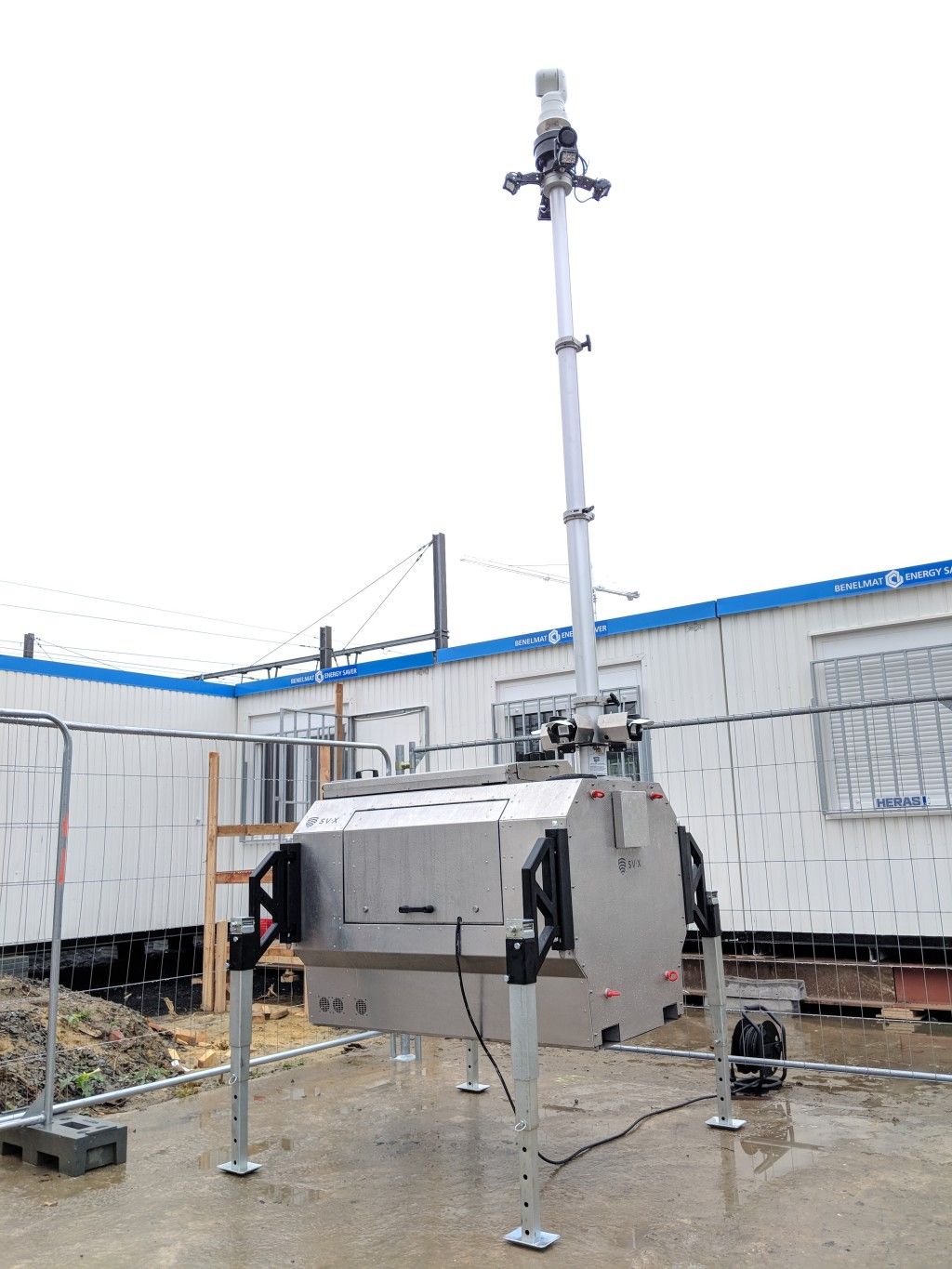

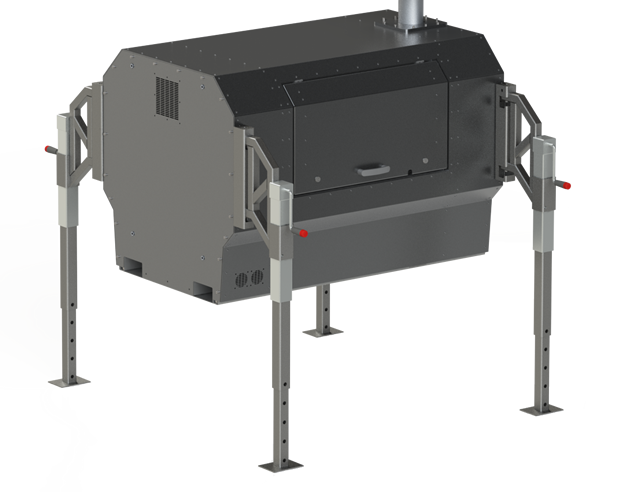

Removable feet

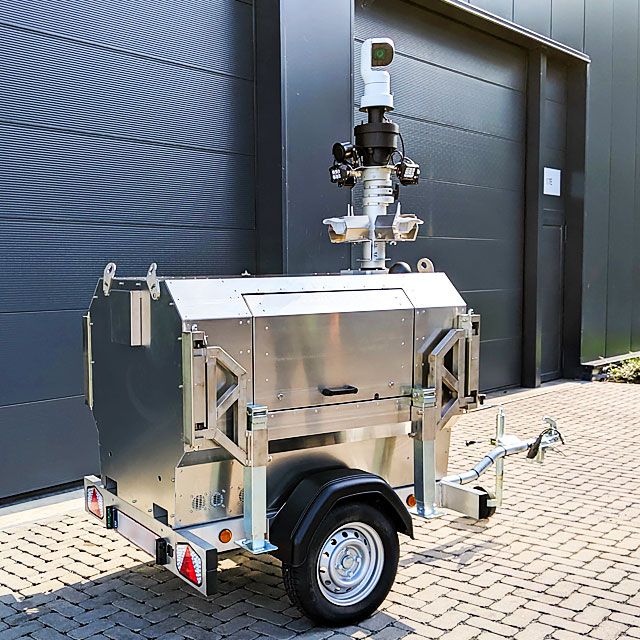

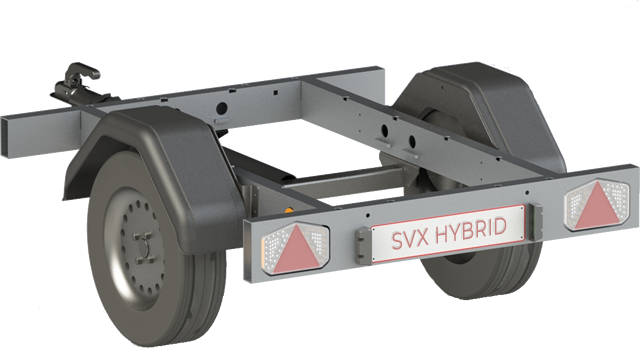

Removable Trailer

Rust free aluminium
Lightweight
Easy to redeploy
Led lights
Compatible with all SVX stations

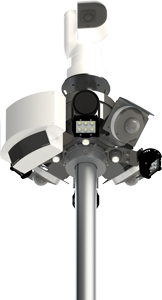

Mast & Cameras

Pneumatic mast with locking system (5m, 7m and 10m)
Compatible with all IP cameras (up to 5 cameras)
4 integrated motion detectors
Radar detector
4 programmable Led floodlights (up to 4x3000 lumen)
Dual color programmable flash light/strobe

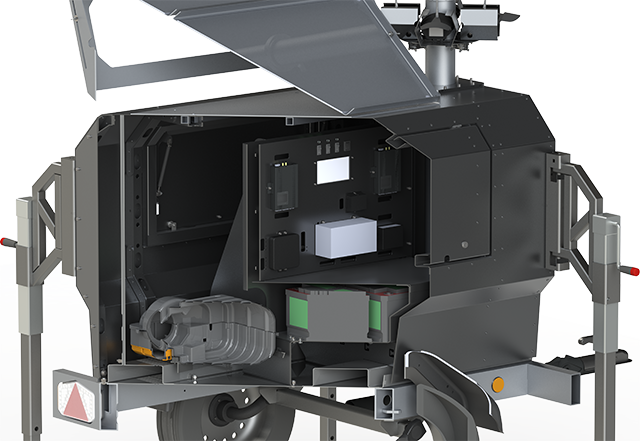

Electronics

Easy control with touchscreen 7” display
On board NVR (SSD and USB storage support)
Internal modem (Voice + SMS)
Dual Sim LTE modem with WiFi and Ethernet

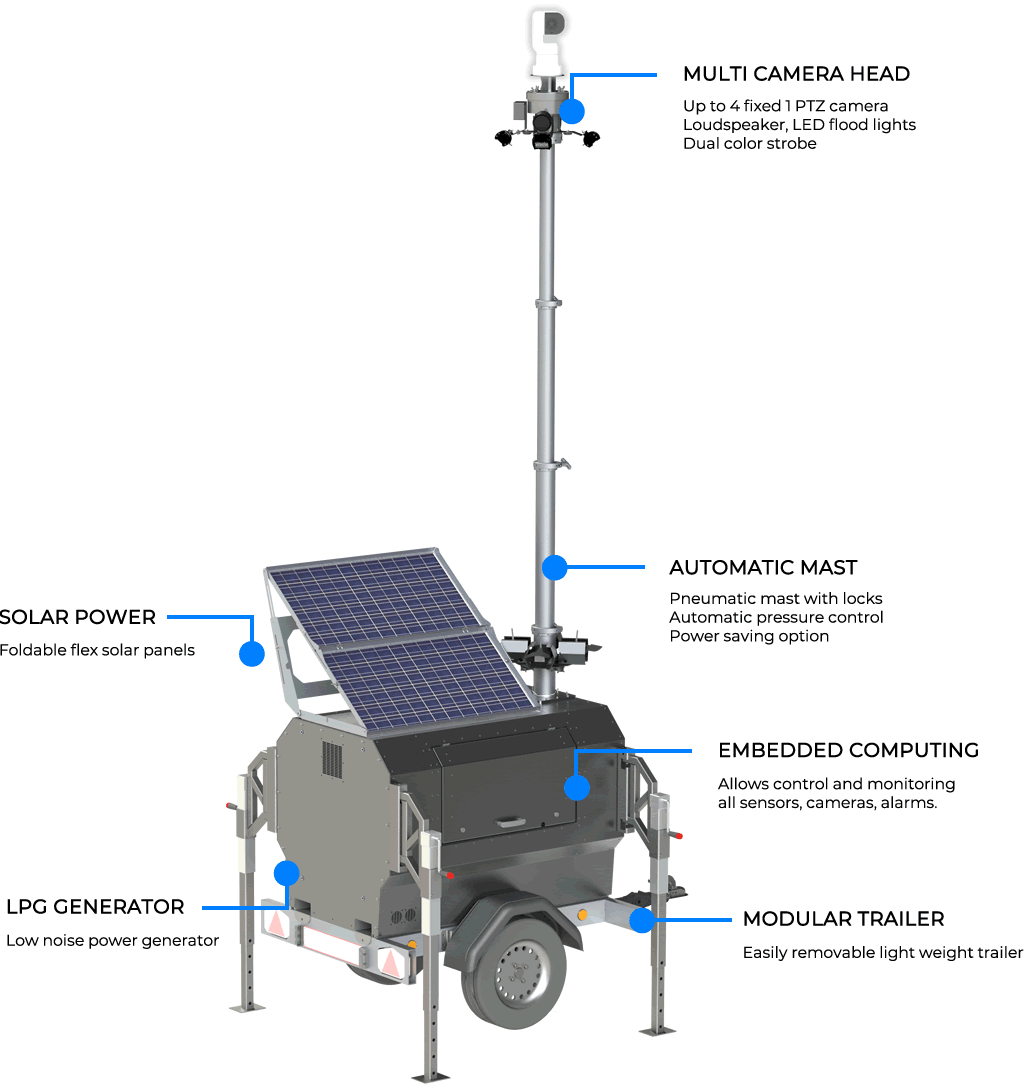

Features & Options

  • Rust free modular aluminium body
  • Removable feet
  • Pneumatic mast with locking system (up to 10 meters)
  • 110/240V AC smart charger
  • 300aH battery pack with low voltage protection
  • LPG low noise generator 51dBA (up to 4 week autonomy)
  • Solar panels 220W (autonomous power & increase autonomy)
  • Fuel cell ready (up to 8 weeks autonomy)
  • Optional wind turbine (400W)
  • Integrated 12V to 48V step up converter (for additional PoE Devices)
  • Easy control with touchscreen 7” display
  • Compatible with all IP cameras (up to 5 cameras)
  • On board NVR (SSD and USB storage support)
  • 4 integrated motion detectors (30x20meter)
  • Additional wireless motion detectors (30x20m or 40x4m) or Radars (120 degree horizontal coverage)
  • Loudspeaker (GSM or IP calls)
  • 4 programmable Led floodlights (up to 4x3000 lumen)
  • Dual color programmable flash light
  • Time lapse and web streaming (YouTube and embedded video)
  • Dual GPS receiver (Geo-Fence and tracking)
  • Shock sensor
  • Door tampers
  • Internal modem (Voice + SMS)
  • Dual Sim LTE modem (Wi-Fi access point and Wi-Fi Wan support)
  • Secured VPN access (L2TP, IPsec, GRE Tunnel, PPTP)
  • Cloud based video surveillance platform
  • Additional Digital inputs, Analog inputs, RS232, RS485 and I2C ports for custom development
  • SV-X software platform developed for different types of integrations: scheduled tasks, logs, mail, sms, voice calls. API support ...

API

The SVX API specification defines a means for developers to enumerate, manipulate and access SVX devices - Like alarm configurations, input output controls, alarm monitoring, camera controls, user controls, sensor data, gps, logs etc.. the API allows you to perform a complete integration with your current system or for new developments.
